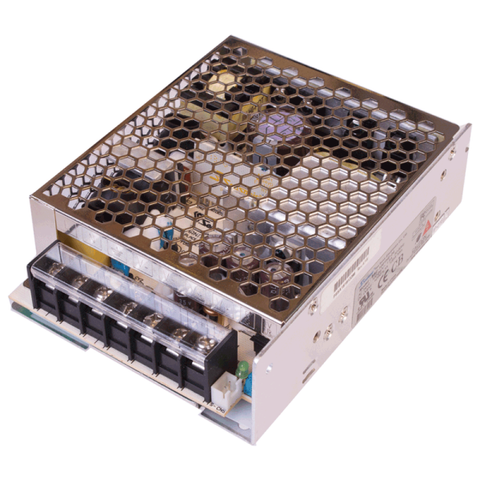

This highly efficient Seasonic enclosed power supply series comes with full international AC input range. LED lights indicate power on and short circuit-, over voltage- and over power protection ensure the safety of the unit and all the components connected to it. It is miniature size design, with merely 99 mm depth, 82 mm width and 35 mm height. Its compact size offers flexibility in a wide range of OEM applications needing such a small size power supply.
- Universal AC input / Full range
- High efficiency (maximum 87 %)
- Short circuit protection
- Over voltage protection
- Over power protection
- Highly reliable Japanese 105 °C aluminum electrolytic capacitors
- Miniature size design
- LED indicator for power on
- Flexible voltage adjustment by VR
| SSE-0501 NE-12 | ||
|---|---|---|
| DC Output Voltage | 12 V | |
| DC Maximum Load | 4.2 A | |
| Total DC Output | 50.4 W | |
| Efficiency at 115 V / 230 V | 82.5 % / 84.5 % | |
| AC Input Voltage | AC 90 V ~ 264 V (47 ~ 63 Hz) | |
| AC Input Current at 115 V / 230 V | < 1.5 A | |
| Voltage Adjusted Rating | 11.4 V ~ 13.2 V | |
| Ripple and Noise | 120 mV | |
| Working Temperature | -25 °C to 70 °C | |
| Cooler Type | Free air convection | |
| Dimensions (L x W x H) | 99 x 82 x 35 mm | |
