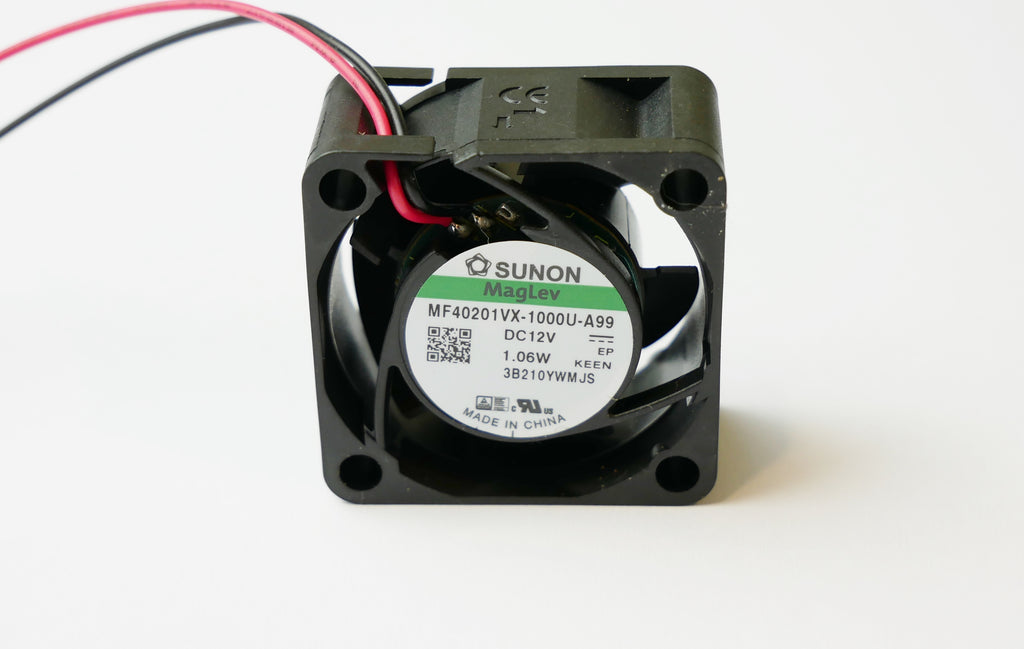

Sunon MF40201VX-1000U-A99 12V 4020 40mm 10.8cfm 27.5dBA fan
Sale

Sunon MF40201VX-1000U-A99 12V 4020 40mm 10.8cfm 27.5dBA fan

£9.99

£11.99 IncVAT

28 pcs in stock

  • Rated Voltage: 12Vdc
  • Startup Voltage: 3.6Vdc
  • Power: 1.06W
  • Rated Speed: 8,000rpm (7200-8800)
  • Air Flow: 10.8 CFM (0.302m³/min)
  • Static Pressure: 0.290 in H2O (72.2 Pa)
  • Size: 40x40x20mm
  • Bearing: DR Maglev Vapo
  • Noise: Noise: 27.5dB(A)
  • 2 wire lead, tinned, approx 300mm length
  • MTBF: 70,000hours @ 40°C



Genuine Sunon Maglev 12Vdc Fan with pre tinned 2 wire lead. This fan also features the latest second generation of Sunon's Maglev Vapo bearing. Introduced as DR (Dust Resistant), this newer bearing design provides greatly enhanced levels of protection to the bearing preventing the ingress of dust. This helps to lengthen the fans service life and reduce the wear and performance drop off that occurs with all fans over time

Each fan carries its own QR code. Scanning this QR code will provide common information as well as each fans individual production Date/time and its RPM and current load at the point of is production test.
