Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard

(* Please visit www.colorful.cn for the latest memory compatibility list)

2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)

2 M.2 slots and 2 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1 RAID with SATA or M.2 NVMe hard disk devices
- M.2_1 slot: supports 2280 M.2 SSD (PCIe 5.0 x4, CPU channel)
- M.2_2 slot: supports 2280 M.2 SSD (PCIe 4.0 x4, CPU channel)

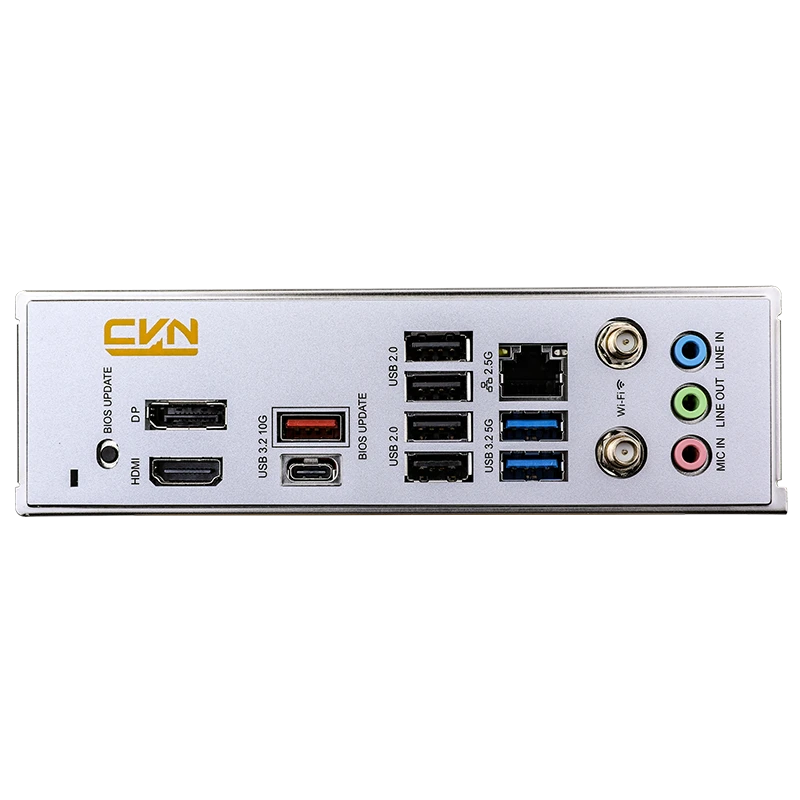

Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×USB 3.2 Gen 2 10Gbps Type-A interface
-1×USB 3.2 Gen 2 10Gbps Type-C interface
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
-1×2.5G network interface
-2×WiFi 6E antenna interfaces
-3×audio interfaces (audio input/audio output/microphone)
-1×BIOS update button
On board:
-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×USB 3.2 Gen 2 Type-C slot expandable 1 USB 3.2 Gen 2 10Gbps Type-C interface
-1×CPU fan pin
-1×system fan pin
-1×water cooling pump pin
-2×5V 3-pin ARGB pins
-1×Front audio pin
-1×front panel pin
-1×speaker pin
-1×Clear CMOS jumper
-1×POST card pin

1×PCIe 5.0 x16 slot

256M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

RTL8125BG 2.5Gbit LAN, AX210 WiFi 6E wireless network card, Bluetooth 5.3

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

ITX
170 x 170 mm
