FSP180-50FEB - 180W Flex ATX 1U power supply FSP180-50LE replacement

FSP180-50FEB - 180W Flex ATX 1U power supply FSP180-50LE replacement

£39.00

£46.80 IncVAT


  • 180W Flex ATX 1U
  • Low Noise Fan
  • 2 Year Warranty
  • 100% Burn in test
  • >80% efficient
  • Replaces FSP180-50LE / FSP180-50PLA / FSP180-50PLA1
  • Ball  Bearing Fan
  • ErP compliant <0.5W input on 5Vsb
  • EN-62368

The FSP180-50FEB is a 180W 1U Flex ATX power supply that replaces FSP180-50LE Like FSP180-50LE FSP180-50FEB suits a wide range of applications including 1U server applications, small form factor mini ITX builds and as a replacement for may shuttle computers and CCTV based systems. As well as replacing FSP180-50LE, FSP180-50FEB can also be used to replace older FSP180-50PLA and FSP180-50PLA1 units.

Produced by Fortron, a global leader in power supplies, FSP180-50FEB provides good solid power to attach systems. Highly reliable every unit undergoes 100% burnin temperature cycle test after production to ensure reliable continued operation. FSP250-50FEB is efficient, with >80% efficiency. Built in short circuit protection ensures the power supply will continue to operate after a short circuit on the output, meaning that if attached equipment does fail and shorts out, FSP180-50FEB will shut down to protect itself and further more minimise the damage by not continuing to provide power to the attached device. Stability is also maintained with under voltage and over voltage protection. Further more over power protection circuitry ensures that should an attached load on FSP180-50FEB become to high, and beyond the specifications of the power supply, it will shut down to protect itself.





Full specifications below



SPECIFICATIONS

Model: FSP180-50FEB
Wattage: 180W
DImensions: 150mm (L) × 81.5 mm (W) × 40.5mm (H)
Efficiency: >80%
Input Specs:

Voltage: 90 to 264Vac (115/230Vac)

Frequency: 47-63Hz

Current: 5A / 3A

Output Specs:

3.3V @ 8A

5V @ 12A

12V @ 12A

-12V @ 0.3A

5Vsb @ 2.0A

Protection:

Over voltage protection

Overload protection

Short Circuit protection

Connectors

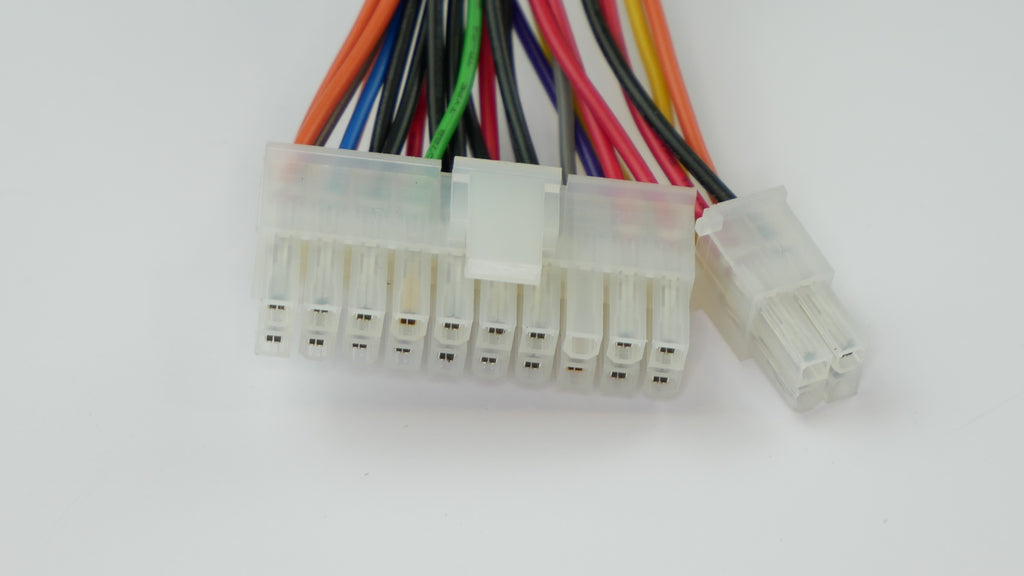

1 x 20+4 pin ATX (20 or 24pin ATX)

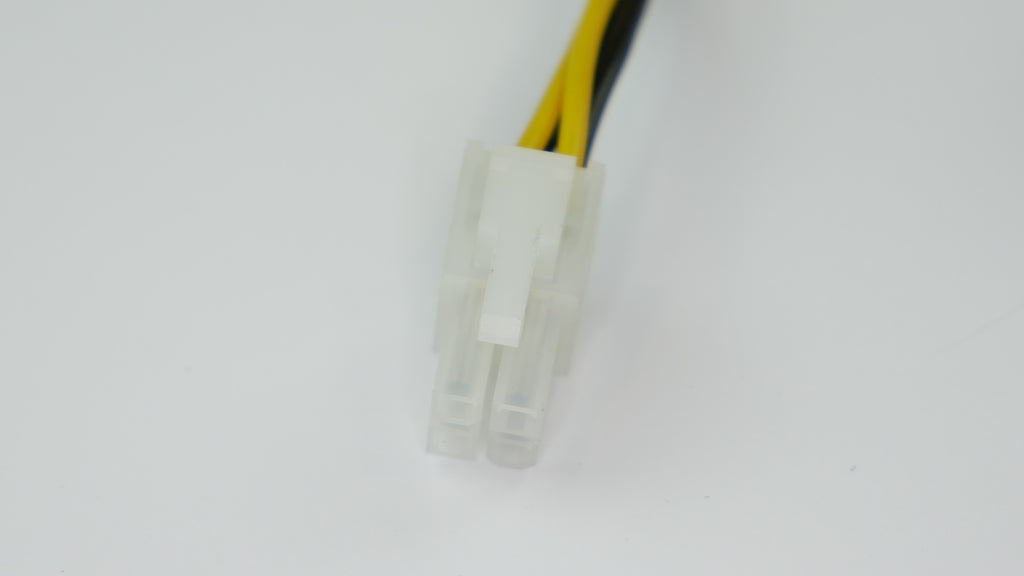

1 x 4pin ATX12V (P4)

1 x 15pin SATA

2 x 4pin Molex

1 x 4pin FDD
