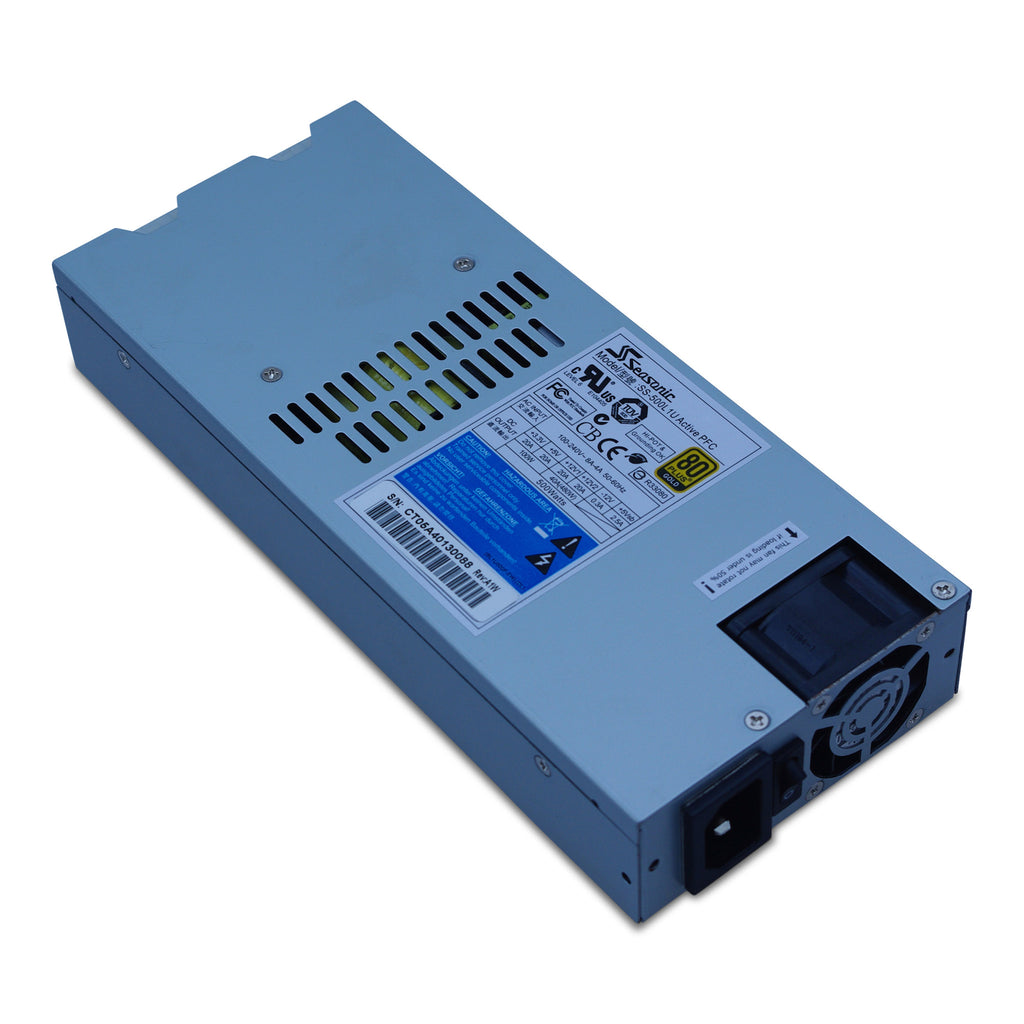

Seasonic SS-500L1U 500W 1U rackmount modular server power supply, PSU

Seasonic SS-500L1U 1U ATX power supply for 19" rackmount server

£80.00

£96.00 IncVAT

4 pcs in stock

  • KIntel EPS 12 V compliant
  • 80 PLUS® Gold certification (up to 90 % efficiency at 115 V AC and 50 % load)
  • DC to DC converter design
  • High efficiency and reliability
  • Fully modular cables
  • 40 mm double ball bearing fan
  • Seasonic S3FC (including Fanless mode)
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100 % HiPot test
  • 100 % Burn-in, high temperature cycled on/off

SS-500L1U is a 500W 1U high end power supply suitable for 19" 1U rackmount servers. It features a fully modular connection enabling custom cabling options or the use of the included cable loom. Furthermore its highly efficient 80Plus Gold certification delivers efficent performance.



Connectors

1 x 24pin ATX

1 x 4+4pin ATX12V or EPS12V

1 x 8pin EPS12V

1 x 6pin PCI-E

4 x SATA

5 x Molex

1 x FDD

Dimensions

235 x 100 x 40mm (LxWxH)
