- 80 Plus Gold Certified
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
Sale

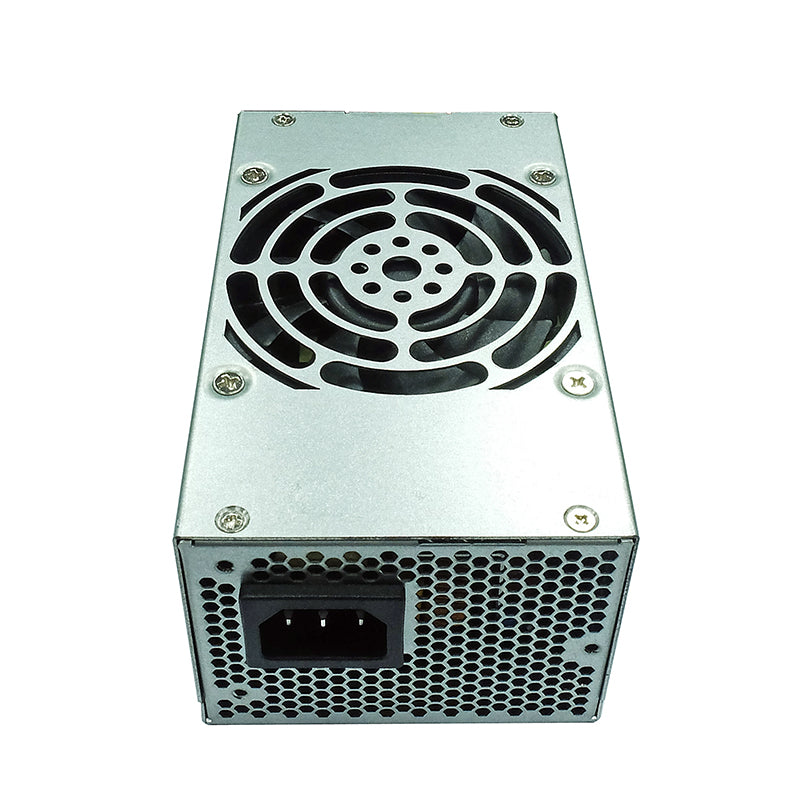

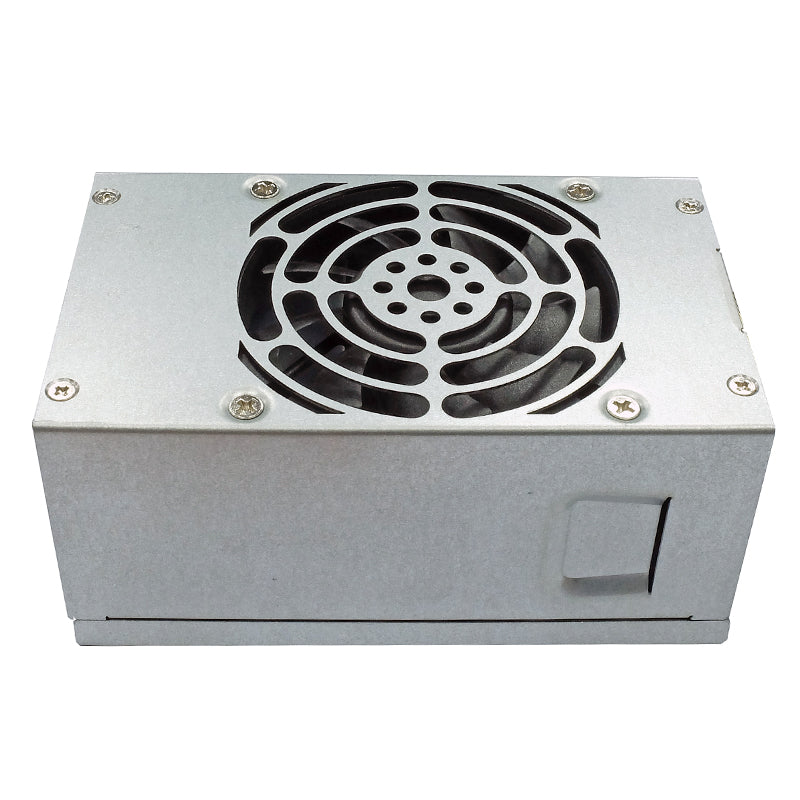

The Seasonic SSP-300TGS is a full input range, industrial grade 300W 'short depth' TFX power supply offering a reliable source of power for a wide range of setups requiring a short depth TFX form factor. Seasonic SSP-300TGS is TFX 12 is highly efficent with 80 PLUS® Gold certification.
Connectors
1 x 24pin ATX
1 x 4+4pin ATX12V or 8pin EPS12V
3 x SATA
1 x Molex
1 x FDD
Dimensions
140 x 85 x 65mm
| DC Outputs | ||||||
|---|---|---|---|---|---|---|
| +3.3 V | +5 V | +12 V Combined | -12 V | +5 Vsb | Total continuous power | Input Type |
| 10 A | 14 A | 25 A | 0.3 A | 2 A | 300 W | Full range |
| 70W (max.) | 300 W | 3.6 W | 10 W | |||
| Specifications | |
|---|---|
| Input frequency | 50 / 60 Hz |
| Efficiency (at normal input voltage) | > 90 % @ 50% load |
| Dielectric withstand, input to frame/ground | 1800 VAC, 1 sec |
| Dielectric withstand, input to output | 1800 VAC, 1 sec |
| Line regulation | ± 1 % (typical) |
| Load regulation | ± 5 % (typical) |
| Cross regulation | ± 5 % (typical) |
| MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
| Active Power Factor Correction | 99 % (typical) |
