Platinum Efficiency - reduced thermals
-
Noctua fan with PWM controller - near silent performance
-
3-year warranty
-
Drop in replacement with customised loom for Framework desktop

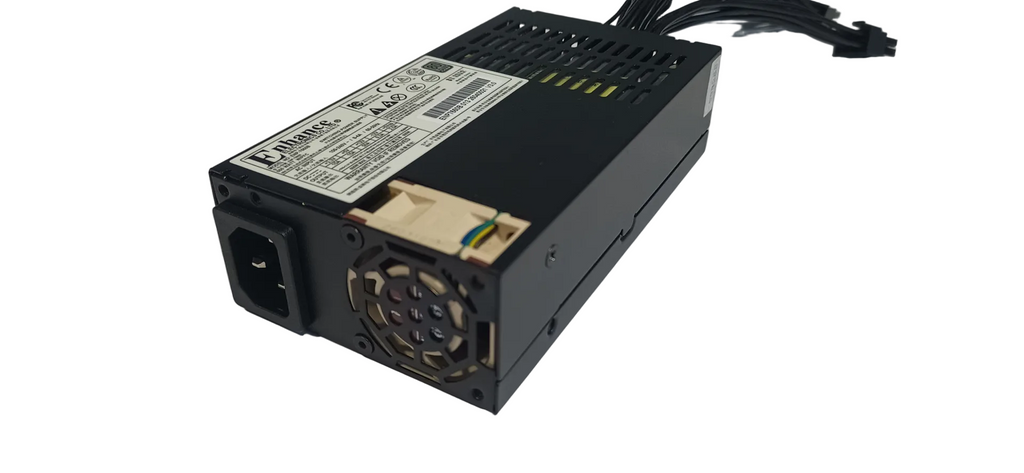

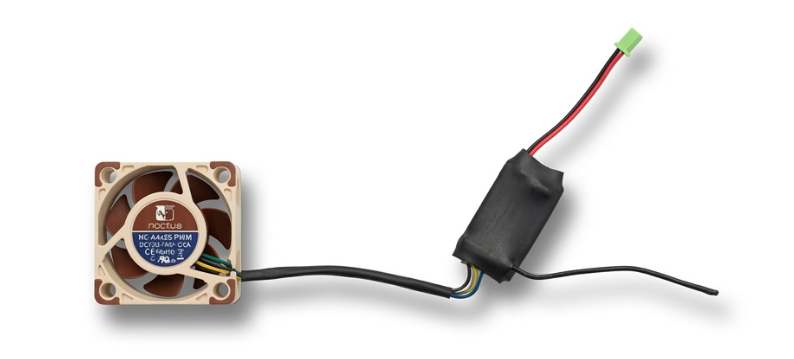

Silenzo ENP-7660B-OVT provides near silent power delivery for framework desktop systems. Developed with support from Enhance Electronics, a Noctua fan and closed loop thermal PWM controller are integrated to provide almost silent performance along with loom customisation all in house at Overtek in the UK.
Furthermore, inlet chokes can be also doped with the aim of mitigating audible choke resonance noise (sometimes referred to as coil whine). Intel choke Coils are bonded to their toroids. This option is not 100% guaranteed, but has been reported by existing users to have been successful.
Production and despatech time currently 1-2 working days
| Model: | ENP-7660B |
| Wattage: | 600W (Silenzo derated to 500W) |
| Dimensions: | 150mm (L) × 81.5 mm (W) × 40.5mm (H) |
| Efficiency: | 80Plus Platinum Certified >92% efficient @ 50% load, >90% efficient@ 100% load |
| Input Specs: |
Voltage: 100 to 240Vac (115/230Vac) Frequency: 50/60Hz Current: 8A / 4A |
| Output Specs: |
3.3V @ 15A 5V @ 15A 12V @ 50A (Silenzo derated 37A max) -12V @ 0.3A 5Vsb @ 2.5A (Silenzo derated combined max load 500W) |
| Protection: |
Over voltage protection Overload protection Short Circuit protection |

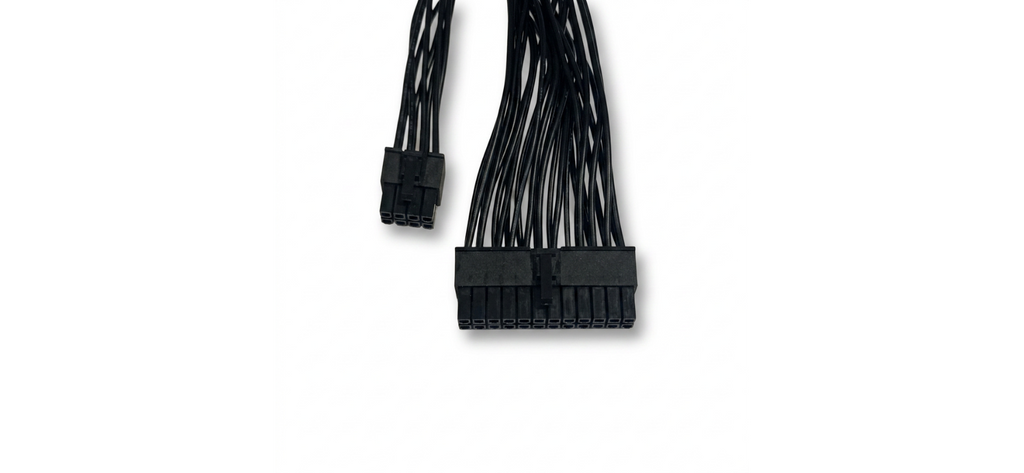

| Connectors |
1 x 24 pin ATX - 17cm 1 x 8pin CPU - 13cm |
