SSP-300SFG - 300W SFX Gold cert Power supply

SSP-300SFG - 300W SFX Gold cert Power supply

£46.00

£55.20 IncVAT

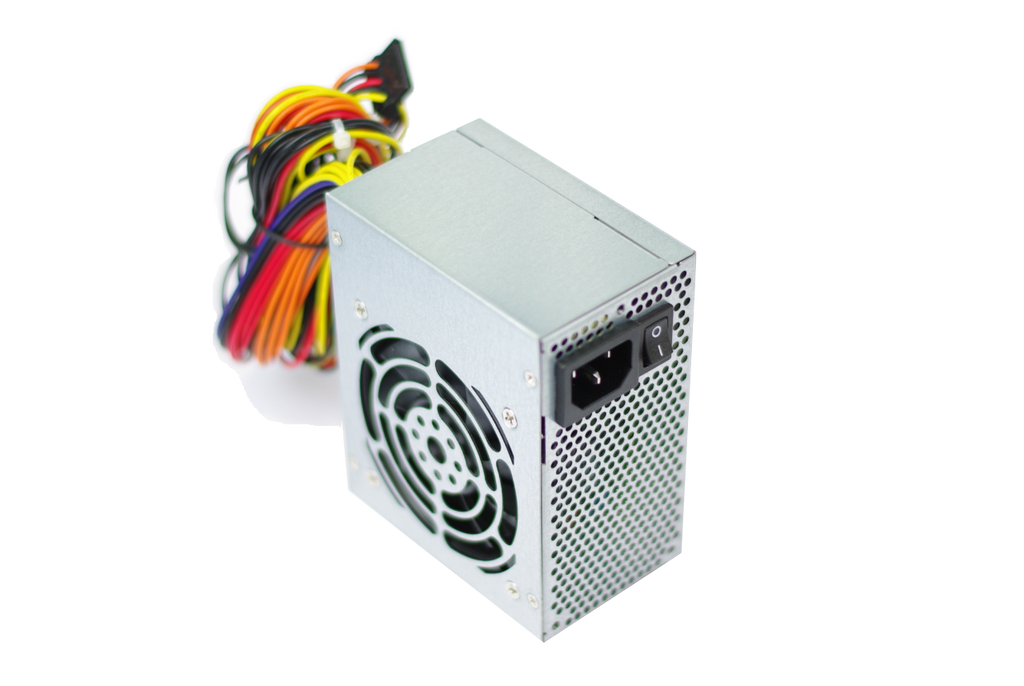

The Seasonic SSP-300SFG is a full input range, industrial grade 300W SFX power supply offering a reliable source of power for a wide range applications. Seasonic An SFX form factor unit, SSP-300SFG is highly efficient with 80 PLUS® Gold certification.
  • 80 Plus Gold Certified
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple and noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100 % HiPot test
  • 100 % Burn-in, high temperature cycled on/off

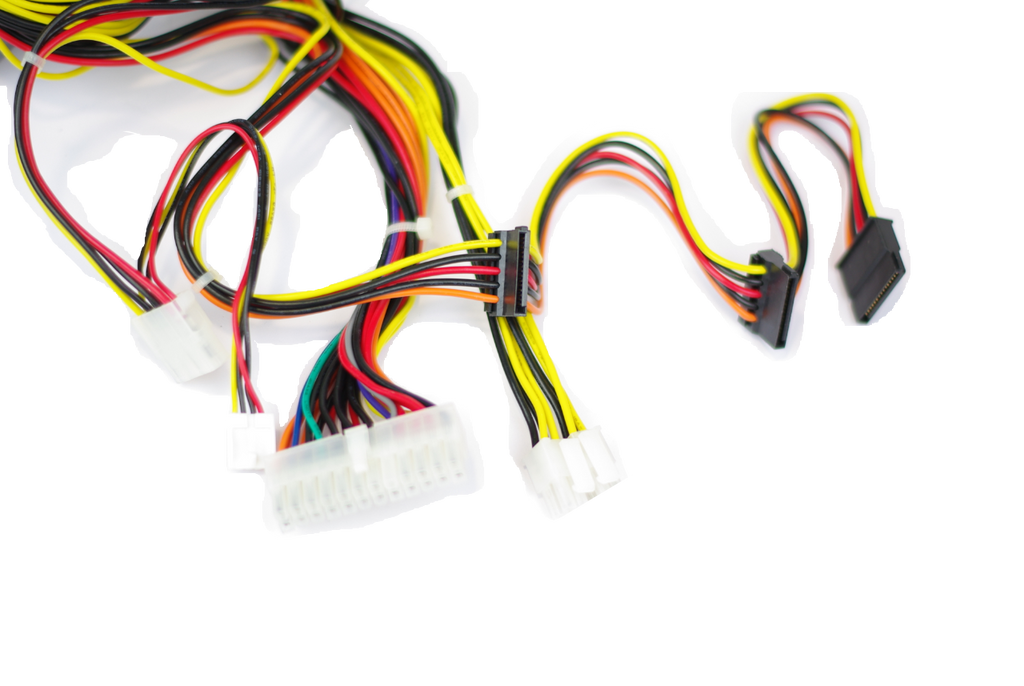

Connectors

1 x 24pin ATX

1 x 4+4pin ATX12V or 8pin EPS12V

3 x SATA

1 x Molex

1 x FDD

Dimensions

125 x 100 x 65mm

DC Outputs
+3.3 V +5 V +12 V Combined -12 V +5 Vsb Total continuous power Input Type
10 A 14 A 25 A 0.3 A 2 A 300 W Full range
70W (max.) 300 W 3.6 W 10 W
Specifications
Input frequency 50 / 60 Hz
Efficiency (at normal input voltage) > 90 % @ 50% load
Dielectric withstand, input to frame/ground 1800 VAC, 1 sec
Dielectric withstand, input to output 1800 VAC, 1 sec
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)
